Quzhou Jiuchen Door Control Technology Co,.Ltd
|
automatic sliding doors operator
| Price: | 333.0~444.0 USD |
| Payment Terms: | T/T,L/C,D/A,D/P,WU |
| Place of Origin: | Zhejiang, China (Mainland) |
|
|
| Add to My Favorites | |
| HiSupplier Escrow |
Product Detail
1. All door function built in control device.
2. Unique designed tension pulley E-lock.
3. Durable advanced nylon roller for long lasting, relia
1. All door function built in control device.
2. Unique designed tension pulley E-lock.
3. Durable advanced nylon roller for long lasting, reliable service
4. DC brushless motor for heavy door, strong power&low noice
5. Remote control: A:close&lock B:one way C:normal open D:half open
A/B:automatic
6. Elegant and graceful looks , economy and durability, excellent in quality

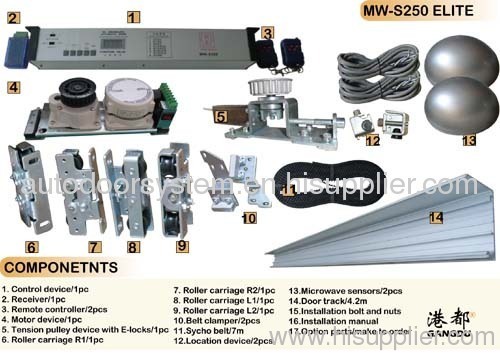

Standard 1 set (S250) door kit include installation components as below:
1. Control device/1pc
2. Receiver/1pc
3. Remote controller/2pcs
4. Motor device/1pc
5. Tension pulley device with E-locks/1pc
6. Roller carriage R1/1pc
7. Roller carriage R2/1pc
8. Roller carriage L1/1pc
9. Roller carriage L2/1pc
10.Belt clamper/2pcs
11.Sycho belt/7m
12.Location device/2pcs
13.Microwave sensors/2pcs
14.Door track/4.2m
15.Installation bolt and nuts
16.Installation manual
17.Option parts/make to order
option parts: End-cap for door track/cover for door track
.Sliding method: single door leaf / double door leaf
.Weight of door: 180KgX 1 / 150Kg X 2
.Installation : surface installation
.Driving rail : 1400 3000 mm / 2800 5000 mm
.Width of door : 700 1500 mm / 700mm 1250X 2
.Consumption power : 70 W
.Electronic pressure: AC200 240V 50Hz
.Temperature : -20 50 .Motor : DC24V60W brushless
.Opening speed : 200 500mm /sec adjustable
.Closing speed : 200 500mm /sec adjustable
.Hold up time : 1 20sec adjustable
.Hand operation force :17.6N(1.8Kgf) 27.4N(2.8Kgf)
.Imput current 220V.stand by : 0.045A .0.09A
.Imput current 220V.working :0.93A .1.29A
